Helper base class for asynchronous jobs using CRTP. More...

#include <mc_rtc/threading/AsyncJob.h>

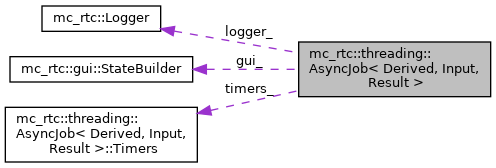

Collaboration diagram for mc_rtc::threading::AsyncJob< Derived, Input, Result >:

[legend]

Classes
struct	Timers

Public Member Functions
	AsyncJob ()=default

	AsyncJob (const AsyncJob &)=delete

AsyncJob &	operator= (const AsyncJob &)=delete

	AsyncJob (AsyncJob &&)=delete

AsyncJob &	operator= (AsyncJob &&)=delete

	~AsyncJob ()

Input &	input ()
	Access the input data for the job. More...

void	startAsync ()

bool	running () const noexcept

bool	startedOnce () const noexcept

bool	checkResult ()
	Check if the asynchronous job has completed and handle bookkeeping. More...

const std::optional< Result > &	lastResult () const noexcept

void	addToLogger (mc_rtc::Logger &logger, const std::string &prefix)

void	addToGUI (mc_rtc::gui::StateBuilder &gui, const std::vector< std::string > &category)

void	removeFromLogger ()

void	removeFromGUI ()

std::string	name () const

Protected Member Functions
void	addToLoggerImpl ()

void	addToGUIImpl ()

Derived &	derived ()

void	addToLogger_ ()

void	addToGUI_ ()

Protected Attributes
std::atomic< bool >	running_ = false

bool	inLogger_ = false

bool	inGUI_ = false

bool	startedOnce_ = false

std::future< Result >	futureResult_

bool	canGetSharedState_ = false

std::optional< Result >	lastResult_

Timers	timers_

Input	input_
	Input data for the asynchronous job. More...

mc_rtc::Logger *	logger_ = nullptr

std::string	loggerPrefix_ = ""

mc_rtc::gui::StateBuilder *	gui_ = nullptr

std::vector< std::string >	guiCategory_

Detailed Description

template<typename Derived, typename Input, typename Result>
struct mc_rtc::threading::AsyncJob< Derived, Input, Result >

Helper base class for asynchronous jobs using CRTP.

This class provides a generic interface for running asynchronous computations, managing their state, and adding logging and GUI. Child classes must inherit using CRTP and implement required methods.

Upon destruction, any associated GUI elements and log entries are automatically removed.

The input_ member may be modified when the async task is not running (i.e., before calling startAsync or when running() is false). The input should not be modified while the async task is running (running() is true). Use input() to access it. Note that while the input() method implements a safeguard that throws if the job is running, it does not inherently make modifying the input in-place safe, ensure that your code does not start another async job while you are modifying the input.

Note: You must call checkResult() at every iteration of your controller loop. This method is responsible for bookkeeping, result retrieval, and deferred GUI/logging actions. It is roughly equivalent to ros::spinOnce() for ROS nodes.

Template Parameters

Derived	The child class type (CRTP).
Input	The input type for the job.
Result	The result type produced by the job.

Required/Optional Child Class Methods

Result computeJob()
- Implements the actual computation. Called asynchronously. (Required)
void addToLoggerImpl()
- Adds job-specific log entries after the first result is available. (Optional)
  Note
  Will only be called if the user has previously called addToLogger().
void addToGUIImpl()
- Adds job-specific GUI elements after the first result is available. (Optional)
  Note
  Will only be called if the user has previously called addToGUI().

Example Usage

struct MyAsyncJob : public mc_rtc::MakeAsyncJob<MyAsyncJob, MyInput, MyResult>
{
  MyResult computeJob()
  {
    MyResult res;
    res.value = input.data * 2;
    return res;
  }

  // Optional: add logging
  void addToLoggerImpl()
  {
    logger_->addLogEntry("my_job_value", this, [this]() { return lastResult_->value; });
  }

  // Optional: add GUI
  void addToGUIImpl()
  {
    gui_->addElement(this, guiCategory_, mc_rtc::gui::Label("Result", [this]() { return lastResult_->value; }));
  }
};

// Usage:
MyAsyncJob job;
job.input = ...;
job.startAsync();
// Later, check for completion:
if(job.checkResult())
{
  auto result = *job.lastResult();
}
// To enable deferred logger/GUI calls:
job.addToLogger(logger, "prefix");
job.addToGUI(gui, {"Category"});
// Upon destruction, GUI and logging entries are automatically removed.

Constructor & Destructor Documentation

◆ AsyncJob() [1/3]

template<typename Derived , typename Input , typename Result >

mc_rtc::threading::AsyncJob< Derived, Input, Result >::AsyncJob ( )

default

◆ AsyncJob() [2/3]

template<typename Derived , typename Input , typename Result >

mc_rtc::threading::AsyncJob< Derived, Input, Result >::AsyncJob ( const AsyncJob< Derived, Input, Result > & )

delete

◆ AsyncJob() [3/3]

template<typename Derived , typename Input , typename Result >

mc_rtc::threading::AsyncJob< Derived, Input, Result >::AsyncJob ( AsyncJob< Derived, Input, Result > && )

delete

◆ ~AsyncJob()

template<typename Derived , typename Input , typename Result >

mc_rtc::threading::AsyncJob< Derived, Input, Result >::~AsyncJob ( )

inline

Member Function Documentation

◆ addToGUI()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::addToGUI	(	mc_rtc::gui::StateBuilder &	gui,
		const std::vector< std::string > &	category
	)

inline

◆ addToGUI_()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::addToGUI_ ( )

inlineprotected

◆ addToGUIImpl()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::addToGUIImpl ( )

inlineprotected

◆ addToLogger()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::addToLogger	(	mc_rtc::Logger &	logger,
		const std::string &	prefix
	)

inline

◆ addToLogger_()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::addToLogger_ ( )

inlineprotected

◆ addToLoggerImpl()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::addToLoggerImpl ( )

inlineprotected

◆ checkResult()

template<typename Derived , typename Input , typename Result >

bool mc_rtc::threading::AsyncJob< Derived, Input, Result >::checkResult ( )

inline

Check if the asynchronous job has completed and handle bookkeeping.

This method must be called at every iteration of the controller. It is responsible for all bookkeeping related to the async job:

Checks if the asynchronous computation has finished.
Retrieves and stores the result if available.
Calls deferred GUI and logging methods if enabled.

This is roughly speaking the equivalent to ros::spinOnce() for ROS nodes.

Returns: True if the job has completed and a result is available, false otherwise.

◆ derived()

template<typename Derived , typename Input , typename Result >

Derived& mc_rtc::threading::AsyncJob< Derived, Input, Result >::derived ( )

inlineprotected

◆ input()

template<typename Derived , typename Input , typename Result >

Input& mc_rtc::threading::AsyncJob< Derived, Input, Result >::input ( )

inline

Access the input data for the job.

Returns a writable reference to the input. Throws std::runtime_error if the async job is running. Only modify the input when running() is false.

Returns: Reference to the input data.

Exceptions

std::runtime_error if the job is running.

◆ lastResult()

template<typename Derived , typename Input , typename Result >

const std::optional<Result>& mc_rtc::threading::AsyncJob< Derived, Input, Result >::lastResult ( ) const

inlinenoexcept

◆ name()

template<typename Derived , typename Input , typename Result >

std::string mc_rtc::threading::AsyncJob< Derived, Input, Result >::name ( ) const

inline

◆ operator=() [1/2]

template<typename Derived , typename Input , typename Result >

AsyncJob& mc_rtc::threading::AsyncJob< Derived, Input, Result >::operator= ( AsyncJob< Derived, Input, Result > && )

delete

◆ operator=() [2/2]

template<typename Derived , typename Input , typename Result >

AsyncJob& mc_rtc::threading::AsyncJob< Derived, Input, Result >::operator= ( const AsyncJob< Derived, Input, Result > & )

delete

◆ removeFromGUI()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::removeFromGUI ( )

inline

◆ removeFromLogger()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::removeFromLogger ( )

inline

◆ running()

template<typename Derived , typename Input , typename Result >

bool mc_rtc::threading::AsyncJob< Derived, Input, Result >::running ( ) const

inlinenoexcept

◆ startAsync()

template<typename Derived , typename Input , typename Result >

void mc_rtc::threading::AsyncJob< Derived, Input, Result >::startAsync ( )

inline

◆ startedOnce()

template<typename Derived , typename Input , typename Result >

bool mc_rtc::threading::AsyncJob< Derived, Input, Result >::startedOnce ( ) const

inlinenoexcept

Returns: True if the job has been started at least once.

Member Data Documentation

◆ canGetSharedState_

template<typename Derived , typename Input , typename Result >

bool mc_rtc::threading::AsyncJob< Derived, Input, Result >::canGetSharedState_ = false

protected

◆ futureResult_

template<typename Derived , typename Input , typename Result >

std::future<Result> mc_rtc::threading::AsyncJob< Derived, Input, Result >::futureResult_

protected

◆ gui_

template<typename Derived , typename Input , typename Result >

mc_rtc::gui::StateBuilder* mc_rtc::threading::AsyncJob< Derived, Input, Result >::gui_ = nullptr

protected

◆ guiCategory_

template<typename Derived , typename Input , typename Result >

std::vector<std::string> mc_rtc::threading::AsyncJob< Derived, Input, Result >::guiCategory_

protected

◆ inGUI_

template<typename Derived , typename Input , typename Result >

bool mc_rtc::threading::AsyncJob< Derived, Input, Result >::inGUI_ = false

protected

◆ inLogger_

template<typename Derived , typename Input , typename Result >

bool mc_rtc::threading::AsyncJob< Derived, Input, Result >::inLogger_ = false

protected

◆ input_

template<typename Derived , typename Input , typename Result >

Input mc_rtc::threading::AsyncJob< Derived, Input, Result >::input_

protected

Input data for the asynchronous job.

This member holds the input required for the job computation. It can be modified only when the async job is not running (i.e., before calling startAsync() or when running() is false). Do not modify this while the async job is running. Use the input() accessor to obtain a writable reference, which throws if the job is running.

◆ lastResult_

template<typename Derived , typename Input , typename Result >

std::optional<Result> mc_rtc::threading::AsyncJob< Derived, Input, Result >::lastResult_

protected

◆ logger_

template<typename Derived , typename Input , typename Result >

mc_rtc::Logger* mc_rtc::threading::AsyncJob< Derived, Input, Result >::logger_ = nullptr

protected

◆ loggerPrefix_

template<typename Derived , typename Input , typename Result >

std::string mc_rtc::threading::AsyncJob< Derived, Input, Result >::loggerPrefix_ = ""

protected

◆ running_

template<typename Derived , typename Input , typename Result >

std::atomic<bool> mc_rtc::threading::AsyncJob< Derived, Input, Result >::running_ = false

protected

◆ startedOnce_

template<typename Derived , typename Input , typename Result >

bool mc_rtc::threading::AsyncJob< Derived, Input, Result >::startedOnce_ = false

protected

◆ timers_

template<typename Derived , typename Input , typename Result >

Timers mc_rtc::threading::AsyncJob< Derived, Input, Result >::timers_

protected

The documentation for this struct was generated from the following file:

include/mc_rtc/threading/AsyncJob.h
