tvm::scheme::internal::ProblemComputationData Class Reference

#include <tvm/scheme/internal/ProblemComputationData.h>

Inheritance diagram for tvm::scheme::internal::ProblemComputationData:

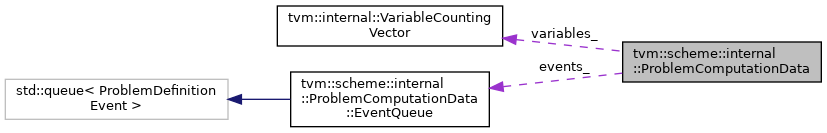

Collaboration diagram for tvm::scheme::internal::ProblemComputationData:

Classes
class	EventQueue

Public Member Functions
virtual	~ProblemComputationData ()=default
int	solverId () const
bool	addVariable (VariablePtr var)
void	addVariable (const VariableVector &vars)
bool	removeVariable (Variable *v)
void	removeVariable (const VariableVector &vars)
const VariableVector &	variables () const
void	setVariablesToSolution ()
void	addEvent (const ProblemDefinitionEvent &e)
ProblemDefinitionEvent	popEvent ()
bool	hasEvents () const
const EventQueue::container_type &	events () const
void	clearEvents ()
void	clearVariables ()

Protected Member Functions
	ProblemComputationData (int solverId)
	ProblemComputationData ()=delete
virtual void	setVariablesToSolution_ (tvm::internal::VariableCountingVector &x)=0

Protected Attributes
tvm::internal::VariableCountingVector	variables_
EventQueue	events_

Detailed Description

Base class to be derived by each resolution scheme to hold all of the temporary memories and states related to the resolution of a problem. The rationale is that a resolution scheme is stateless, and when given for the first time a problem to solve, creates a ProblemComputationData that it gives to the problem and retrieves at each further resolution. A problem computation data further act as a queue of events changing the problem definition.

Constructor & Destructor Documentation

~ProblemComputationData()

virtual tvm::scheme::internal::ProblemComputationData::~ProblemComputationData ( )

virtualdefault

ProblemComputationData() [1/2]

tvm::scheme::internal::ProblemComputationData::ProblemComputationData ( int  solverId )

inlineprotected

ProblemComputationData() [2/2]

tvm::scheme::internal::ProblemComputationData::ProblemComputationData ( )

protecteddelete

Member Function Documentation

addEvent()

void tvm::scheme::internal::ProblemComputationData::addEvent ( const ProblemDefinitionEvent &  e )

inline

Adding an event changing the problem definition, that needs to be handled by the resolution scheme. Events are stored in a queue (FIFO).

addVariable() [1/2]

void tvm::scheme::internal::ProblemComputationData::addVariable ( const VariableVector &  vars )

inline

Add a set of variables, calling addVariable(VariablePtr var) on each variable.

addVariable() [2/2]

bool tvm::scheme::internal::ProblemComputationData::addVariable ( VariablePtr  var )

inline

Add a variable if not already present. Return true if the variable was effectively added. The class counts how many time a variable was added.

clearEvents()

void tvm::scheme::internal::ProblemComputationData::clearEvents ( )

inline

Clear the list of events.

clearVariables()

void tvm::scheme::internal::ProblemComputationData::clearVariables ( )

inline

Clear the variable vector.

events()

const ProblemComputationData::EventQueue::container_type & tvm::scheme::internal::ProblemComputationData::events ( ) const

inline

List of events.

hasEvents()

bool tvm::scheme::internal::ProblemComputationData::hasEvents ( ) const

inline

Is the queue not empty?

popEvent()

ProblemDefinitionEvent tvm::scheme::internal::ProblemComputationData::popEvent ( )

inline

Read and remove the first event in the queue. Need the queue to be non-empty.

removeVariable() [1/2]

void tvm::scheme::internal::ProblemComputationData::removeVariable ( const VariableVector &  vars )

inline

Remove a set of variables, calling removeVariable(Variable* v) on each variable.

removeVariable() [2/2]

bool tvm::scheme::internal::ProblemComputationData::removeVariable ( Variable *  v )

inline

Effectively remove a variable if as many calls were made to this method as to addVariable, for the given variable. Return true if the variable was really removed.

setVariablesToSolution()

void tvm::scheme::internal::ProblemComputationData::setVariablesToSolution ( )

inline

Set the value of the variables to that of the solution.

setVariablesToSolution_()

virtual void tvm::scheme::internal::ProblemComputationData::setVariablesToSolution_ ( tvm::internal::VariableCountingVector &  x )

protectedpure virtual

Need to put in x the solution of the computation.

solverId()

int tvm::scheme::internal::ProblemComputationData::solverId ( ) const

inline

variables()

const VariableVector & tvm::scheme::internal::ProblemComputationData::variables ( ) const

inline

Get the variables of the problem.

Member Data Documentation

events_

EventQueue tvm::scheme::internal::ProblemComputationData::events_

protected

Problem definition events

variables_

tvm::internal::VariableCountingVector tvm::scheme::internal::ProblemComputationData::variables_

protected

The problem variable

---

The documentation for this class was generated from the following file:

• include/tvm/scheme/internal/ProblemComputationData.h
