#include <tvm/solver/abstract/LeastSquareSolver.h>

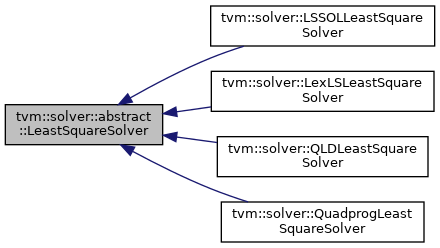

Inheritance diagram for tvm::solver::abstract::LeastSquareSolver:

[legend]

Classes
struct	ImpactFromChanges

struct	MarkedAssignment

Public Types
template<typename K , typename T >
using	map = utils::internal::map< K, T >

using	AssignmentVector = std::vector< std::unique_ptr< MarkedAssignment > >

using	AssignmentPtrVector = std::vector< MarkedAssignment * >

using	MapToAssignment = map< constraint::abstract::LinearConstraint *, AssignmentPtrVector >

Public Member Functions
	LeastSquareSolver (bool verbose=false)

	LeastSquareSolver (const LeastSquareSolver &)=delete

LeastSquareSolver &	operator= (const LeastSquareSolver &)=delete

virtual	~LeastSquareSolver ()=default

void	startBuild (const VariableVector &x, int nObj, int nEq, int nIneq, bool useBounds=true, const hint::internal::Substitutions *const subs=nullptr)

void	finalizeBuild ()

void	addBound (LinearConstraintPtr bound)

void	addConstraint (LinearConstraintPtr cstr)

void	addObjective (LinearConstraintPtr obj, SolvingRequirementsPtr req, double additionalWeight=1)

void	setMinimumNorm ()

bool	solve ()

const Eigen::VectorXd &	result () const

int	constraintSize (const constraint::abstract::LinearConstraint &c) const

void	process (const internal::SolverEvents &se)

Protected Member Functions
virtual void	initializeBuild_ (int nObj, int nEq, int nIneq, bool useBounds)=0

virtual ImpactFromChanges	resize_ (int nObj, int nEq, int nIneq, bool useBounds)=0

virtual void	addBound_ (LinearConstraintPtr bound, RangePtr range, bool first)=0

virtual void	addEqualityConstraint_ (LinearConstraintPtr cstr)=0

virtual void	addIneqalityConstraint_ (LinearConstraintPtr cstr)=0

virtual void	addObjective_ (LinearConstraintPtr obj, SolvingRequirementsPtr req, double additionalWeight=1)=0

virtual void	setMinimumNorm_ ()=0

virtual void	resetBounds_ ()=0

virtual void	preAssignmentProcess_ ()

virtual void	postAssignmentProcess_ ()

virtual bool	solve_ ()=0

virtual const Eigen::VectorXd &	result_ () const =0

virtual bool	handleDoubleSidedConstraint_ () const =0

virtual Range	nextEqualityConstraintRange_ (const constraint::abstract::LinearConstraint &cstr) const =0

virtual Range	nextInequalityConstraintRange_ (const constraint::abstract::LinearConstraint &cstr) const =0

virtual Range	nextObjectiveRange_ (const constraint::abstract::LinearConstraint &cstr) const =0

virtual void	removeBounds_ (const Range &range)=0

virtual void	updateEqualityTargetData (scheme::internal::AssignmentTarget &target)=0

virtual void	updateInequalityTargetData (scheme::internal::AssignmentTarget &target)=0

virtual void	updateBoundTargetData (scheme::internal::AssignmentTarget &target)=0

virtual void	updateObjectiveTargetData (scheme::internal::AssignmentTarget &target)=0

virtual void	applyImpactLogic (ImpactFromChanges &impact)

virtual void	printProblemData_ () const =0

virtual void	printDiagnostic_ () const =0

const VariableVector &	variables () const

const hint::internal::Substitutions *	substitutions () const

template<typename... Args>
void	addAssignement (Args &&... args)

Protected Attributes
int	nEq_

int	nIneq_

int	nObj_

int	objSize_

int	eqSize_

int	ineqSize_

Detailed Description

Base class for a (constrained) least-square solver.

The problem to be solved has the general form min. ||Ax-b||^2 s.t. C_e x = d l <= C_i x <= u xl <= x <= xu

where l or u might be set to -inf or +inf, and the explicit bounds are optional.

When deriving this class, also remember to derive the factory class LSSolverFactory as well.

Member Typedef Documentation

◆ AssignmentPtrVector

using tvm::solver::abstract::LeastSquareSolver::AssignmentPtrVector = std::vector<MarkedAssignment *>

◆ AssignmentVector

using tvm::solver::abstract::LeastSquareSolver::AssignmentVector = std::vector<std::unique_ptr<MarkedAssignment> >

◆ map

template<typename K , typename T >

using tvm::solver::abstract::LeastSquareSolver::map = utils::internal::map<K, T>

◆ MapToAssignment

using tvm::solver::abstract::LeastSquareSolver::MapToAssignment = map<constraint::abstract::LinearConstraint *, AssignmentPtrVector>

Constructor & Destructor Documentation

◆ LeastSquareSolver() [1/2]

tvm::solver::abstract::LeastSquareSolver::LeastSquareSolver ( bool verbose = false )

◆ LeastSquareSolver() [2/2]

tvm::solver::abstract::LeastSquareSolver::LeastSquareSolver ( const LeastSquareSolver & )

delete

◆ ~LeastSquareSolver()

virtual tvm::solver::abstract::LeastSquareSolver::~LeastSquareSolver ( )

virtualdefault

Member Function Documentation

◆ addAssignement()

template<typename... Args>

void tvm::solver::abstract::LeastSquareSolver::addAssignement ( Args &&... args )

inlineprotected

◆ addBound()

void tvm::solver::abstract::LeastSquareSolver::addBound ( LinearConstraintPtr bound )

Add a bound constraint to the solver. If multiple bounds appears on the same variable, their intersection is taken.

◆ addBound_()

virtual void tvm::solver::abstract::LeastSquareSolver::addBound_	(	LinearConstraintPtr	bound,
		RangePtr	range,
		bool	first
	)

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ addConstraint()

void tvm::solver::abstract::LeastSquareSolver::addConstraint ( LinearConstraintPtr cstr )

Add a constraint to the solver.

◆ addEqualityConstraint_()

virtual void tvm::solver::abstract::LeastSquareSolver::addEqualityConstraint_ ( LinearConstraintPtr cstr )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ addIneqalityConstraint_()

virtual void tvm::solver::abstract::LeastSquareSolver::addIneqalityConstraint_ ( LinearConstraintPtr cstr )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ addObjective()

void tvm::solver::abstract::LeastSquareSolver::addObjective	(	LinearConstraintPtr	obj,
		SolvingRequirementsPtr	req,
		double	additionalWeight = `1`
	)

Add an objective to the solver with given requirements

Parameters

obj	The linear expression added in least-square form
req	The solving requirements. Only the weight-related requirements will be taken into account
additionalWeight	An additional factor that will multiply the other weights.

◆ addObjective_()

virtual void tvm::solver::abstract::LeastSquareSolver::addObjective_	(	LinearConstraintPtr	obj,
		SolvingRequirementsPtr	req,
		double	additionalWeight = `1`
	)

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ applyImpactLogic()

virtual void tvm::solver::abstract::LeastSquareSolver::applyImpactLogic ( ImpactFromChanges & impact )

protectedvirtual

If for a derived class, the change on a category implies the change on others, impact is changed accordingly.

Reimplemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ constraintSize()

int tvm::solver::abstract::LeastSquareSolver::constraintSize ( const constraint::abstract::LinearConstraint & c ) const

Return the constraint size for the solver. This can be different from the actual constraint size if the constraint is a double-sided inequality but the solver only accept simple sided constraints

◆ finalizeBuild()

void tvm::solver::abstract::LeastSquareSolver::finalizeBuild ( )

Finalize the build.

◆ handleDoubleSidedConstraint_()

virtual bool tvm::solver::abstract::LeastSquareSolver::handleDoubleSidedConstraint_ ( ) const

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ initializeBuild_()

virtual void tvm::solver::abstract::LeastSquareSolver::initializeBuild_	(	int	nObj,
		int	nEq,
		int	nIneq,
		bool	useBounds
	)

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ nextEqualityConstraintRange_()

virtual Range tvm::solver::abstract::LeastSquareSolver::nextEqualityConstraintRange_ ( const constraint::abstract::LinearConstraint & cstr ) const

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ nextInequalityConstraintRange_()

virtual Range tvm::solver::abstract::LeastSquareSolver::nextInequalityConstraintRange_ ( const constraint::abstract::LinearConstraint & cstr ) const

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ nextObjectiveRange_()

virtual Range tvm::solver::abstract::LeastSquareSolver::nextObjectiveRange_ ( const constraint::abstract::LinearConstraint & cstr ) const

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ operator=()

LeastSquareSolver& tvm::solver::abstract::LeastSquareSolver::operator= ( const LeastSquareSolver & )

delete

◆ postAssignmentProcess_()

virtual void tvm::solver::abstract::LeastSquareSolver::postAssignmentProcess_ ( )

inlineprotectedvirtual

Reimplemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ preAssignmentProcess_()

virtual void tvm::solver::abstract::LeastSquareSolver::preAssignmentProcess_ ( )

inlineprotectedvirtual

Reimplemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ printDiagnostic_()

virtual void tvm::solver::abstract::LeastSquareSolver::printDiagnostic_ ( ) const

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ printProblemData_()

virtual void tvm::solver::abstract::LeastSquareSolver::printProblemData_ ( ) const

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ process()

void tvm::solver::abstract::LeastSquareSolver::process ( const internal::SolverEvents & se )

Update the data according to the events

◆ removeBounds_()

virtual void tvm::solver::abstract::LeastSquareSolver::removeBounds_ ( const Range & range )

protectedpure virtual

Remove the bounds on variable at given range from the data passed to the solver (e.g. set the bounds to -/+Inf).

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, tvm::solver::LexLSLeastSquareSolver, and tvm::solver::QLDLeastSquareSolver.

◆ resetBounds_()

virtual void tvm::solver::abstract::LeastSquareSolver::resetBounds_ ( )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ resize_()

virtual ImpactFromChanges tvm::solver::abstract::LeastSquareSolver::resize_	(	int	nObj,
		int	nEq,
		int	nIneq,
		bool	useBounds
	)

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ result()

const Eigen::VectorXd& tvm::solver::abstract::LeastSquareSolver::result ( ) const

Get the result of the previous call to solve()

◆ result_()

virtual const Eigen::VectorXd& tvm::solver::abstract::LeastSquareSolver::result_ ( ) const

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ setMinimumNorm()

void tvm::solver::abstract::LeastSquareSolver::setMinimumNorm ( )

Set ||x||^2 as the least square objective of the problem.

Warning: this replace previously added objectives.

◆ setMinimumNorm_()

virtual void tvm::solver::abstract::LeastSquareSolver::setMinimumNorm_ ( )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ solve()

bool tvm::solver::abstract::LeastSquareSolver::solve ( )

Solve the problem

Returns: true upon success of the resolution.

◆ solve_()

virtual bool tvm::solver::abstract::LeastSquareSolver::solve_ ( )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ startBuild()

void tvm::solver::abstract::LeastSquareSolver::startBuild	(	const VariableVector &	x,
		int	nObj,
		int	nEq,
		int	nIneq,
		bool	useBounds = `true`,
		const hint::internal::Substitutions *const	subs = `nullptr`
	)

Open a build sequence for a problem on the current variables (set through the inherited ProblemComputationData::addVariable) with the specified dimensions, allocating the memory needed.

Parameters

x	The variables of the problem. The object need to be valid until ::finalizeBuild is called.
nObj	Row size of A.
nEq	Row size of C_e.
nIneq	Row size of C_i.
useBounds	Presence of explicit bounds in the problem.
subs	Possible substitutions used for solving.

Once a build is started, objective, constraints and bounds can be added through ::addObjective, ::addConstraint and ::addBound, until ::finalizeBuild is called.

◆ substitutions()

const hint::internal::Substitutions* tvm::solver::abstract::LeastSquareSolver::substitutions ( ) const

inlineprotected

◆ updateBoundTargetData()

virtual void tvm::solver::abstract::LeastSquareSolver::updateBoundTargetData ( scheme::internal::AssignmentTarget & target )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ updateEqualityTargetData()

virtual void tvm::solver::abstract::LeastSquareSolver::updateEqualityTargetData ( scheme::internal::AssignmentTarget & target )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ updateInequalityTargetData()

virtual void tvm::solver::abstract::LeastSquareSolver::updateInequalityTargetData ( scheme::internal::AssignmentTarget & target )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ updateObjectiveTargetData()

virtual void tvm::solver::abstract::LeastSquareSolver::updateObjectiveTargetData ( scheme::internal::AssignmentTarget & target )

protectedpure virtual

Implemented in tvm::solver::QuadprogLeastSquareSolver, tvm::solver::QLDLeastSquareSolver, tvm::solver::LSSOLLeastSquareSolver, and tvm::solver::LexLSLeastSquareSolver.

◆ variables()

const VariableVector& tvm::solver::abstract::LeastSquareSolver::variables ( ) const

inlineprotected

Member Data Documentation

◆ eqSize_

int tvm::solver::abstract::LeastSquareSolver::eqSize_

protected

◆ ineqSize_

int tvm::solver::abstract::LeastSquareSolver::ineqSize_

protected

◆ nEq_

int tvm::solver::abstract::LeastSquareSolver::nEq_

protected

◆ nIneq_

int tvm::solver::abstract::LeastSquareSolver::nIneq_

protected

◆ nObj_

int tvm::solver::abstract::LeastSquareSolver::nObj_

protected

◆ objSize_

int tvm::solver::abstract::LeastSquareSolver::objSize_

protected

The documentation for this class was generated from the following file:

include/tvm/solver/abstract/LeastSquareSolver.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ AssignmentPtrVector

◆ AssignmentVector

◆ map

◆ MapToAssignment

Constructor & Destructor Documentation

◆ LeastSquareSolver() [1/2]

◆ LeastSquareSolver() [2/2]

◆ ~LeastSquareSolver()

Member Function Documentation

◆ addAssignement()

◆ addBound()

◆ addBound_()

◆ addConstraint()

◆ addEqualityConstraint_()

◆ addIneqalityConstraint_()

◆ addObjective()

◆ addObjective_()

◆ applyImpactLogic()

◆ constraintSize()

◆ finalizeBuild()

◆ handleDoubleSidedConstraint_()

◆ initializeBuild_()

◆ nextEqualityConstraintRange_()

◆ nextInequalityConstraintRange_()

◆ nextObjectiveRange_()

◆ operator=()

◆ postAssignmentProcess_()

◆ preAssignmentProcess_()

◆ printDiagnostic_()

◆ printProblemData_()

◆ process()

◆ removeBounds_()

◆ resetBounds_()

◆ resize_()

◆ result()

◆ result_()

◆ setMinimumNorm()

◆ setMinimumNorm_()

◆ solve()

◆ solve_()

◆ startBuild()

◆ substitutions()

◆ updateBoundTargetData()

◆ updateEqualityTargetData()

◆ updateInequalityTargetData()

◆ updateObjectiveTargetData()

◆ variables()

Member Data Documentation

◆ eqSize_

◆ ineqSize_

◆ nEq_

◆ nIneq_

◆ nObj_

◆ objSize_
